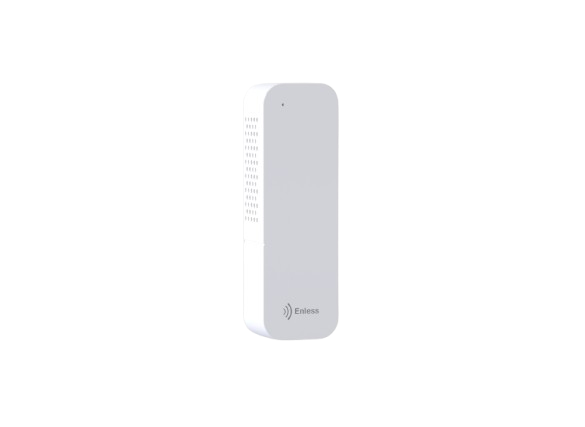

Mini LoRaWAN Temperature and Humidity Sensor
- LoRaWAN compatible sensor
- For use in commercial buildings
- Measures temperature and humidity levels
- Discreet design
- Very long radio range
- Battery life up to 5 years
Dimensions: W 30 x H 95 x D 21 mm
Measured values: Temperature and humidity
Battery life: Up to 5 years
Reference: TX T&H MINI 600-050
Sensor applications
The Enless LoRaWAN temperature and humidity sensor is specifically designed for indoor commercial environments. It monitors key parameters essential to occupant comfort, such as temperature and humidity, ensuring an optimal indoor climate.
Thanks to its design, this LoRaWAN sensor can be easily integrated into various types of buildings (multi-unit housing, offices, schools, public buildings, cultural sites). It ensures accurate management of ambient temperature and humidity, helping to improve building energy performance.
The miniaturized LoRaWAN temperature and humidity sensor stands out for its ultra-compact size and discreet presence. Powered by a 2/3 AA 3.6V battery, it ensures reliable measurement of environmental parameters.
LoRaWAN or proprietary LoRa mode

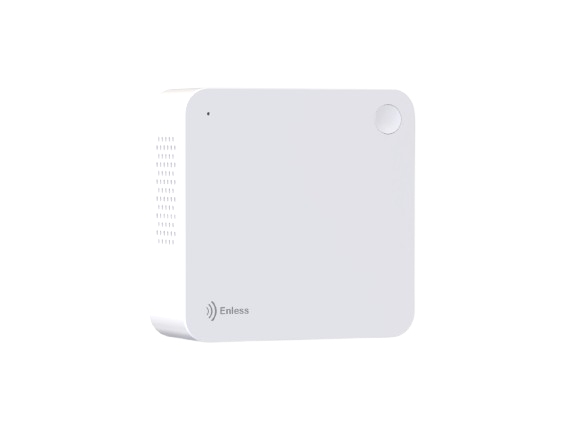

LoRaWAN Ambient Temperature and Humidity Sensor
- LoRaWAN compatible device
- For use in tertiary environments
- Measures temperature and humidity levels
- Very long radio range
- Up to 15 years battery life
Dimensions: W 77 x H 77 x D 30 mm
Measured values: Temperature and humidity
Battery life: Up to 15 years
Reference: TX T&H AMB 600-051
Sensor applications
The Enless LoRaWAN temperature and humidity sensor is specifically designed to monitor comfort in tertiary environments. It accurately measures ambient temperature and humidity, ensuring a healthy and controlled indoor climate for occupants.
Thanks to its compact and discreet design, this sensor easily integrates into all types of buildings (offices, schools, social housing, public facilities, etc.). It provides precise control of environmental parameters, contributing to improved energy performance and occupant well-being.
Temperature and humidity are measured with high precision:
- Temperature: range -40 to +125°C, accuracy ±0.2°C, resolution 0.1°C
- Humidity: range 0 to 100% RH, accuracy ±2% RH, resolution 0.1% RH
The sensor can be wall-mounted using screws or 3M double-sided adhesive, without opening the device during commissioning. A switch on the back allows easy selection of the desired operating mode (LoRaWAN or Enless proprietary LoRa). Configuration is quick via the My Enless mobile app.
It is powered by a replaceable 3.6V type C lithium battery, with optional USB-C power supply available for installations requiring continuous power.
Thanks to the high-capacity type C battery, the sensor offers up to 15 years of battery life (5 years with data transmission every 5 minutes in SF9), significantly reducing maintenance operations and associated costs.
LoRaWAN or proprietary LoRa mode
LoRaWAN Ambient Temperature and Humidity Sensor with Display
- LoRaWAN compatible sensor
- For use in commercial buildings
- Measures temperature and humidity levels
- Discreet design
- Very long radio range
- Battery life up to 10 years
Dimensions: W 77 x H 77 x D 30 mm
Measured values: Temperature and humidity
Battery life: Up to 10 years
Reference: TX T&H AMB E-INK 600-052
Sensor applications
The LoRaWAN temperature and humidity sensor with display is specifically designed for indoor tertiary environments. It enables monitoring of key parameters essential to occupant comfort, such as temperature and humidity, ensuring an optimal indoor climate. Measured data are displayed on its 2.13-inch e-ink screen.
Thanks to its thoughtful design, this LoRaWAN sensor can be easily integrated into various types of buildings (multi-unit housing, offices, schools, public buildings, cultural centers, etc.). The sensor ensures accurate control of ambient temperature and humidity, helping to improve energy performance and overall building comfort. Thanks to the 2.13-inch e-ink display, occupants can view real-time environmental data directly from the sensor.
The sensor is designed for fast and simple commissioning: it can be installed without even opening the device. The operating mode (proprietary LoRa or LoRaWAN) can be selected via a switch on the back of the product. Configuration is easy via the My Enless mobile app.
The sensor is equipped with a type C battery but can also be powered via USB-C if required.
It reduces maintenance costs thanks to the high-capacity type C battery. The Enless LoRa temperature and humidity sensor can achieve more than 10 years of battery life (depending on data transmission frequency).
LoRaWAN or proprietary LoRa mode

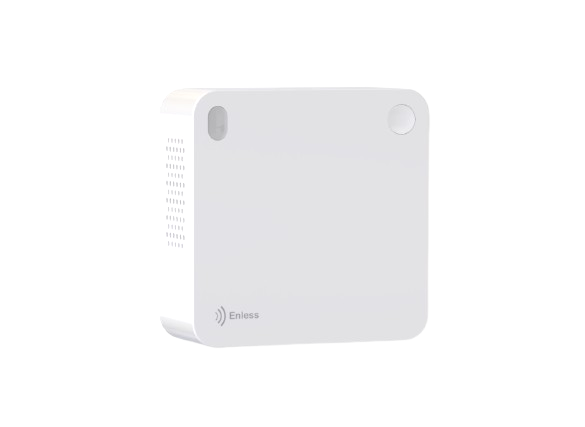

LoRaWAN CO₂, Temperature and Humidity Sensor
- Indoor air quality measurement
- LED indicator for CO₂ concentration
- LoRaWAN and proprietary LoRa compatible
- High-capacity type C battery
- Up to 10 years battery life
- Very long radio range
Dimensions: W 77 x H 77 x D 30 mm
Measured values: CO₂, temperature and humidity
Battery life: Up to 10 years
Reference: TX CO2 T&H AMB 600-053
Sensor applications
The Enless LoRaWAN CO₂, temperature and humidity sensor is specifically designed for indoor commercial environments. It enables monitoring of key parameters essential to occupant comfort, such as CO₂ levels, temperature and humidity, ensuring an optimal indoor climate.
Thanks to its design, this LoRaWAN sensor can be easily integrated into various types of buildings (multi-unit housing, offices, schools, public buildings, cultural sites). The CO₂ sensor accurately measures carbon dioxide levels, as well as indoor temperature and humidity.
It features an LED indicator that changes color based on CO₂ concentration, providing a quick and intuitive display of indoor air quality.
The CO₂ sensor is designed for fast and effortless commissioning: it can be installed without even opening the device. The operating mode can be selected via a switch on the back of the product. Configuration is simple via the My Enless mobile app.
LoRaWAN or proprietary LoRa mode

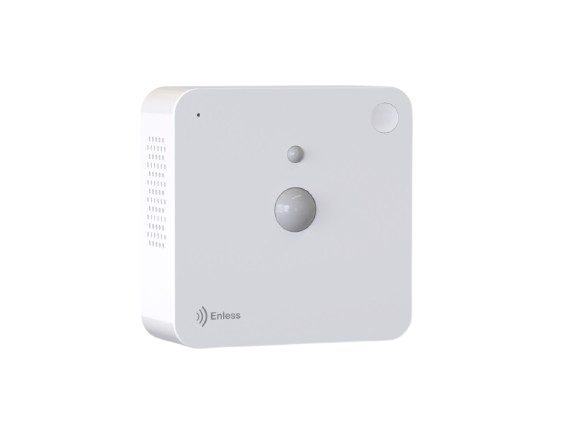

LoRaWAN Light, Presence, Temperature and Humidity Sensor
- Presence detection
- Suitable for commercial indoor environments
- Measurement of light intensity, presence, temperature, and humidity levels
- Compatible with LoRaWAN and proprietary LoRa
- Very long radio range
- Up to 10 years battery life
Dimensions: W 77 x H 77 x D 30 mm
Measured values: Light, Presence, Temperature, and Humidity
Battery life: Up to 10 years
Reference: TX LIGHT PIR T&H 600-062
Sensor applications
The Enless LoRaWAN light, presence, temperature, and humidity sensor is specifically designed for commercial and residential indoor environments. Developed to optimize indoor comfort and energy efficiency, this sensor enables precise monitoring of light, temperature, humidity, and presence levels within a room.
This sensor features PIR presence detection with 100° horizontal and vertical coverage, able to detect movements up to 8 meters. It also identifies day/night cycles thanks to the integrated light sensor. It accurately measures the following environmental parameters:
- Temperature: range from -40 to +125°C, accuracy ±0.2°C, resolution 0.1°C
- Relative humidity: range 0–100% RH, accuracy ±2% RH, resolution 0.1% RH
- Light: intelligent day/night detection
Designed for fixed installations, the sensor can be wall-mounted using screws or 3M double-sided tape. Its compact housing has an IP40 rating, making it suitable for indoor environments. Equipped with a high-capacity, replaceable type-C lithium battery, it offers up to 10 years of autonomy (up to 5 years with data transmissions every 15 minutes in SF9 mode). A USB-C power supply option is also available for installations requiring continuous power.
LoRaWAN or proprietary LoRa mode

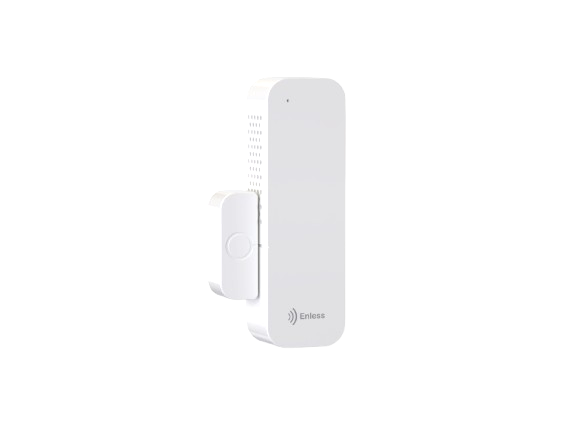

LoRaWAN Door and Window Opening/Closing Detection Sensor
- Measures the opening/closing status of doors and windows
- Suitable for commercial buildings
- Discreet design
- Very long radio range
- Battery life up to 5 years
Dimensions: W 30 x H 95 x D 21 mm
Measured values: Door and window opening/closing detection
Battery life: Up to 5 years
Reference: TX WINDOW 600-065
Sensor applications
The Enless LoRaWAN opening/closing detection sensor is specifically designed for commercial indoor environments. It allows real-time monitoring of the open or closed status of doors and windows, helping to protect premises and optimize building energy consumption.
The door and window opening/closing sensor can be easily integrated into a wide range of buildings (offices, schools, ERP systems, collective housing, cultural sites, etc.). It immediately detects any state change (open/closed) via an associated magnet, providing instant feedback.
The LoRaWAN door and window opening/closing sensor stands out for its ultra-compact size and discreet design. Powered by a 2/3 AA battery, it delivers reliable detection of state changes (open/closed).
LoRaWAN or proprietary LoRa mode
LoRaWAN Indoor Air Quality sensor
- EU868 LoRaWAN compatible device
- Use in tertiary environment
- Indoor Air Quality monitoring
- Measurement of CO2, temperature, and humidity levels
- Up to 5 years of autonomy
105 x 95 x 38mm
Measured values: CO2, Temperature, Humidity
Up to 5 years of autonomy
Reference: TX CO2 T&H AMB 600-023
Applications of the sensor
The level of CO2 is the main indicator of the air quality breathed by the building occupants. This data has a direct influence on the daily comfort of the occupants in enclosed spaces, and can trigger issues such as fatigue, drowsiness, and headaches.
Designed for measuring air quality in tertiary environments, the LoRa(WAN) Enless air quality sensor allows you to monitor CO2 (ppm), temperature, and humidity values in the building.
The CO2, temperature, and humidity LoRa Enless sensor is suitable for various types of buildings:
- Residential buildings
- Offices
- Schools
- Public or cultural establishment
The indoor air quality sensor can be used in LoRaWAN mode or in Enless proprietary LoRa for simplified integration with your BMS.
Equipped with a high-capacity D-type battery, its autonomy can reach over 5 years.
Ambient Temperature and Humidity Sensor
- Suitable for indoor use
- Compact Design
- Easy to deploy
- Freestanding or wall mounted
- Replaceable battery
- Up to 15 years autonomy
99 x 85 x 32mm
Embedded temperature and humidity sensors
Battery life: > 10 years for 5mn transmission period
Very long radio range
Reference: TX T&H AMB 600-021
Applications of the sensor
Specifically designed for indoor applications in an ambient environment, the Enless Wireless LoRa / LoRaWAN humidity and temperature sensor allows you to monitor occupant comfort levels, thanks to its integrated sensors of temperature and humidity (data °C – %rH ) and save energy by monitoring HVAC systems – Heating Ventilation Air Conditioning – in situ.
The LoRa / LoRaWAN temperature and humidity sensor is suitable for many applications and sectors:
- Housing (social housing, etc.)
- Public access buildings such as public educational buildings (schools, colleges, high schools, higher education establishments, training centres, etc.), cultural – sometimes for the preservation of goods and works – (museums, castles, sports complexes, libraries, showrooms, city halls, etc.) and sanitation (health facilities, hospitals, retirement homes, EHPAD…)
- Tertiary sector (including storage/preservation applications, computer centre and server room management, etc.)
Totally discreet, our LoRa / LoRaWAN sensor can be fixed to a wall but also positioned on a surface.
