Modbus Master Transmitter
- For use only with our LoRa proprietary mode
- Reading / Writing to maximum of 60 registers
- Communication with up to 10 slaves
- Power supply 7.5 – 24 V
- Very long radio range
118 x 79 x 43 mm
Reference: TX MODBUS 600-041
Applications of the transmitter
The Enless Modbus master transmitter can read / write up to 60 Modbus registers (16 or 32 bit), distributed over a maximum of 10 separate slaves.
The Enless TX MODBUS is only compatible with the Enless proprietary LoRa mode.
The Enless Modbus master transmitter and the Enless Modbus receiver communicate by radio, making it possible to:
- Read the Modbus registers and send the data to the Enless receiver
- Write in the Modbus registers at the command of the Enless receiver
This device is particularly well suited to Modbus based remote energy meter reading applications, but it can also be adapted for reading / writing Modbus registers in a number of other applications (air conditioning, rooftop, etc.).
The Enless Modbus master Transmitter power supply is external – 7.5 to 24V.

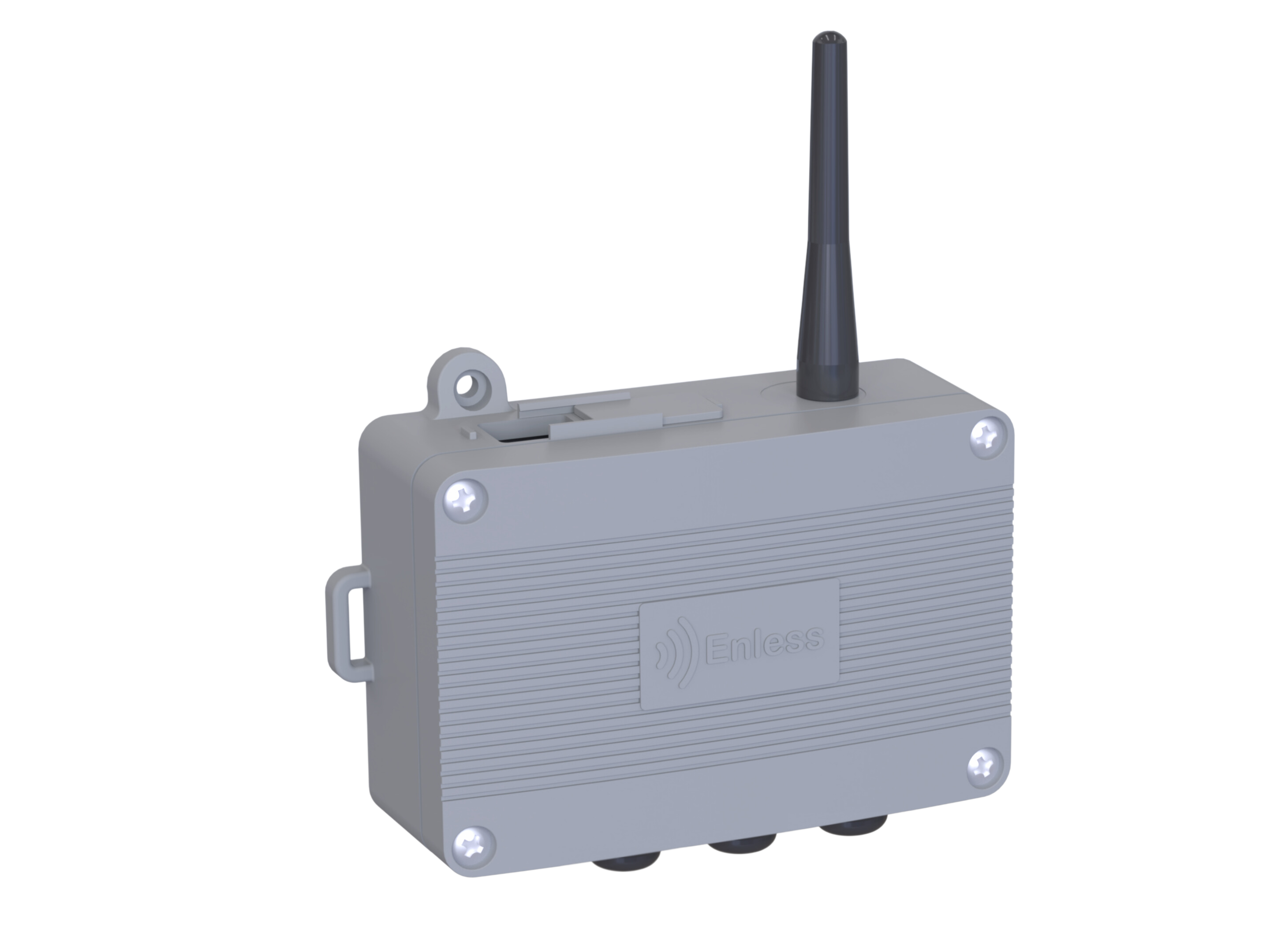

Actuator Transmitter – 2 Inputs 4 Outputs
- Can only be used in Enless proprietary LoRa mode
- ON/OFF status report 2 inputs
- Can handle 4 relay outputs
- Power supply 7.5 – 24V
- Very long radio range
- Quick configuration via embedded server
118 x 79 x 43 mm
Reference: TX IO 600-040
Applications of the transmitter
The Enless Wireless TX IO LoRa transmitter is a remote actuator. With its 2 dry contact inputs and 4 relay outputs , it allows you access to contact status (open/closed) reports, as well as giving you remote control over your equipment (ex: valves, air heaters, etc.).
The TX IO transmitter is only compatible with our Enless proprietary LoRa mode. There are three operating modes:
- Remote control mode
The transmitter dialogues with an Enless receiver (Modbus or BACnet).
It supplies status reports for the 2 inputs to the receiver and can control its 4 relay outputs with commands sent by the receiver.
- Local control mode
The outputs are controlled based on inputs status by means of scenarios configured at the TX IO level.
- D2D (Device to Device) mode
The TX IO dialogues directly with up to 4 other Enless LoRa transmitters.
The outputs are controlled on the basis of the thresholds configured in the sensors it dialogues with.
The TX IO transmitter is powered externally – 7.5 to 24V.
Analog sensor – 4/20mA interface
- 4/20mA input – terminal block – for all types of industrial applications
- Very long radio range
- Rugged IP 65 enclosure
- Up to 15 years autonomy
- Interchangeable battery
- Easy to deploy
- Compact design
118 x 79 x 43mm
Usable with 4/20 mA probes
Battery life: > 10 years for 5mn transmission period
Very long radio range
Reference: TX 4/20 mA 600-035
Applications
This LoRa / LoRaWAN 4/20mA analogue radio sensor is specifically designed for industrial applications (construction industry – water management – rail industry, etc.).
Self-powered, it connects to all types of analogue probes with 4/20mA interface and reassemble the signal.This transmitter can meet all types of applications including pressure, flow, fluid levels (water, fuel oil, gas, etc.) / gauges (ultrasonic probes), etc. The robustness of thisLoRa / LoRaWAN transmitter – IP 65 enclosure – and its high environmental tolerance (-20°C / +55°C) allow it to withstand any type of environment.

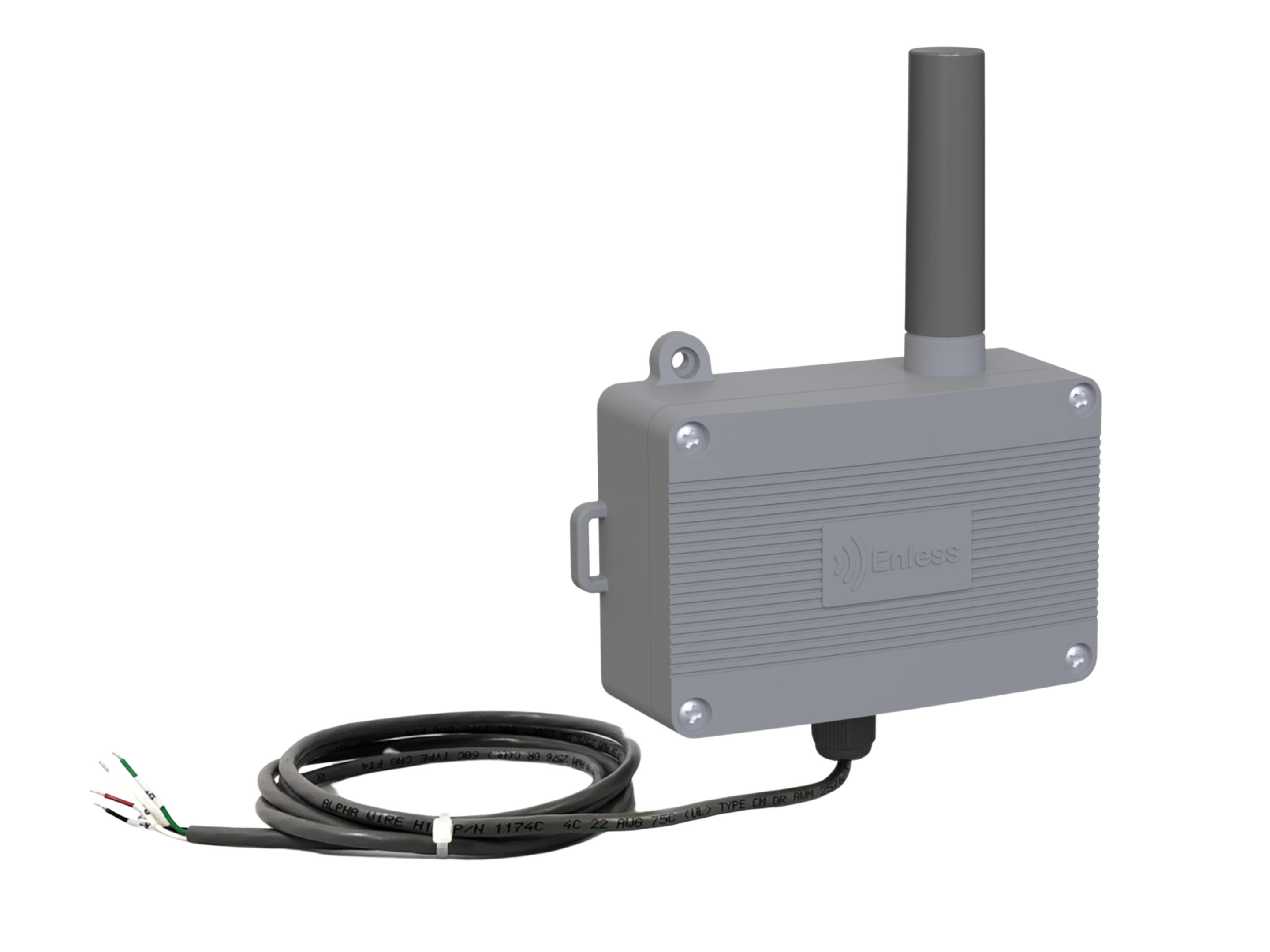

Digital Input sensor (status report ON/OFF)
- ON/OFF status report
- Very long radio range
- IP 65 resistant enclosure for outdoor environments
- Up to 15 years autonomy
- Replaceable battery
- Quick and easy to install
- Compact design
118 x 79 x 43mm
2 digital inputs that can be used simultaneously
Instantaneous message after status change
Battery life: > 10 years for 5mn transmission period
Riferimento: TX CONTACT 600-039
Applications of the sensor
This LoRa / LoRaWAN contact/status change sensor is specifically designed for smart building, security and industrial applications. It meets all types of ON/OFF status change monitoring needs thanks to its two TOR inputs (binary output signal).
The main uses of contact sensor monitoring are :
- Presence, break-in and access control:
Monitoring of door openings and closures in office environments, or security gates in industrial areas (warehouses, machine access, etc.).
- Monitoring of machines and systems:
Detection of system failures, monitoring of machine operating times, level alerts, etc.
The robustness of our transmitter – IP 65 enclosure – and its high environmental tolerance (-20°C / +55°C) allow it to withstand any type of environment. Real-time alerts from the Enless Wireless contact/status change sensor via its two dry contact interfaces will allow you to implement quick actions in response to the received messages.
