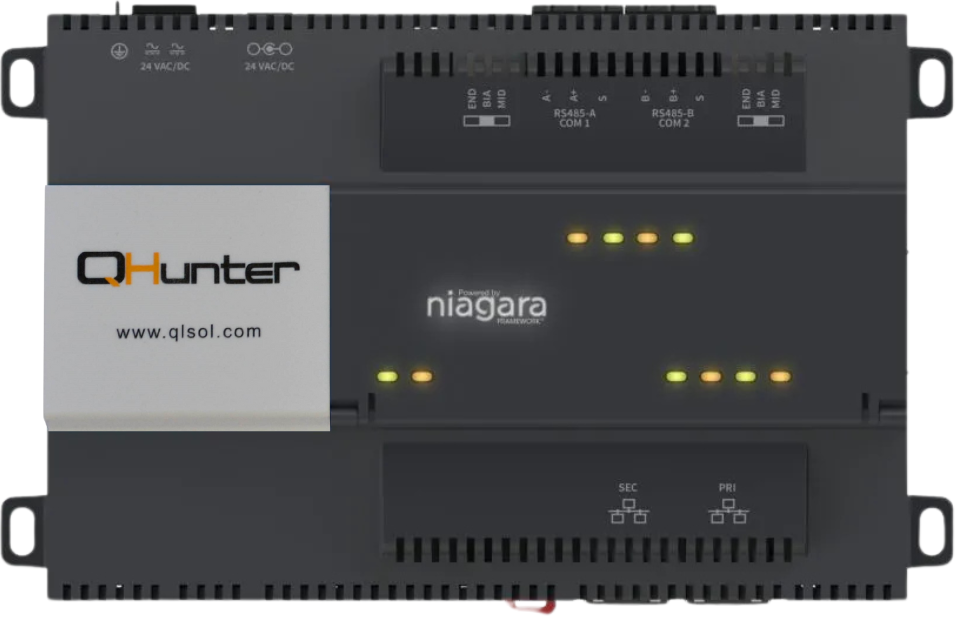

JACE® 8000 / QHUNTER
Tridium has created an all-new hardware platform optimized for Niagara 4: the JACE 8000 controller. This next-generation controller features a global design that functions with legacy systems and can scale for future needs. The JACE 8000 controller offers significant improvements over previous generations. The JACE 8000 is a compact, embedded IoT (Internet of Things) controller and server platform for connecting multiple and diverse devices and sub-systems. With Internet connectivity and Webserving capability, the JACE 8000 controller provides integrated control, supervision, data logging, alarming, scheduling and network management. It streams data and rich graphical displays to a standard Web browser via an Ethernet or wireless LAN, or remotely over the Internet. The licensing model for the JACE 8000 controller is simplified and features standard drivers along with optional IO and field bus expansion modules for ultimate flexibility and expandability. The JACE 8000 controller operates with Niagara 4, the latest version of the Niagara Framework®, for optimum performance. In larger facilities, multibuilding applications and large-scale control system integrations, Niagara 4 Supervisors can be used with JACE 8000 controllers to aggregate information, including real-time data, history and alarms, to create a single, unified application.
Features
- Powerful Niagara 4 hardware platform with easy software upgrade capability
- Modular hardware design for fast and easy installation
- Tool-less installation
- Expandable with up to four option modules
- Native Wi-Fi capability
- 24VAC/DC—standard global power supply
- Standard open drivers included
- Easy to select the right capacity license
- Intuitive user interface
- Rich choice of different colors, materials and finishes for differentiated OEM brand identification
Supported drivers
Many open protocol drivers are included:
BACnet IP and MSTP, LON, KNX-IP, M-bus, Modbus all types, oBiX, OpenADR, SNMP, MQTT, OPC-UA
NIAGARA EDGE 10
Tridium’s Niagara Edge 10 is an IP-based field equipment controller powered by the Niagara Framework®. By leveraging the Niagara Framework, Niagara Edge 10 offers a single-tool infrastructure, the ability to create smarter, more efficient systems, and world-class security. Niagara Edge 10 controllers run the full Niagara stack, with 10 points of on-board IO and IO-R-34 expansion capability. Niagara Edge 10 controllers are perfect for powering fan coil units, single-stage air handling units, heat pumps and more. Expand the IO with an IO-R-34 to open up even more possibilities. Niagara Edge 10 licensing supports three devices and 50 total points to harness the full power of Niagara at the edge.
Niagara 4 – Requires Niagara 4.7 or later.
Features
- IP-based IO controller
- Powered by the Niagara Framework®
- 5 universal inputs
- 3 digital outputs
- 2 analog outputs
- 1 485 serial port
- 2 ethernet ports that support daisy-chain topology
- Expandable via one IO-R-34
- Powered via 24VAC/DC source
Applications
- Fan coil unit
- Single-stage air handling unit
- Water source heat pump
- Zone control
- Boiler with hot water reset
- And much more…
JACE300
- Dedicated Platform Power PC @ 250 MHz.
- Support for standard communication protocols.
- Web user interface rich in detail, for the representation of real-time data on the browser.
- Switches to stand-alone energy management autonomy and multi-protocol integration.
- Communication option boards for standard protocols.
- Option Boards I/O 16 or 34 points.
- Design small, compact and easy to install.
- Support for different types of power supply.
JACE600E
- Dedicated Platform Power PC @ 524 MHz.
- It supports standard communication protocols.
- QNX operating system.
- Web user interface rich in detail for the representation of real-time data on the browser.
- Switches to stand-alone energy management autonomy and applications intergrate the JACE-600 series.
- Supports 2 communication option boards for standard protocols.
- Option Boards I/O 16 or 34 points.
